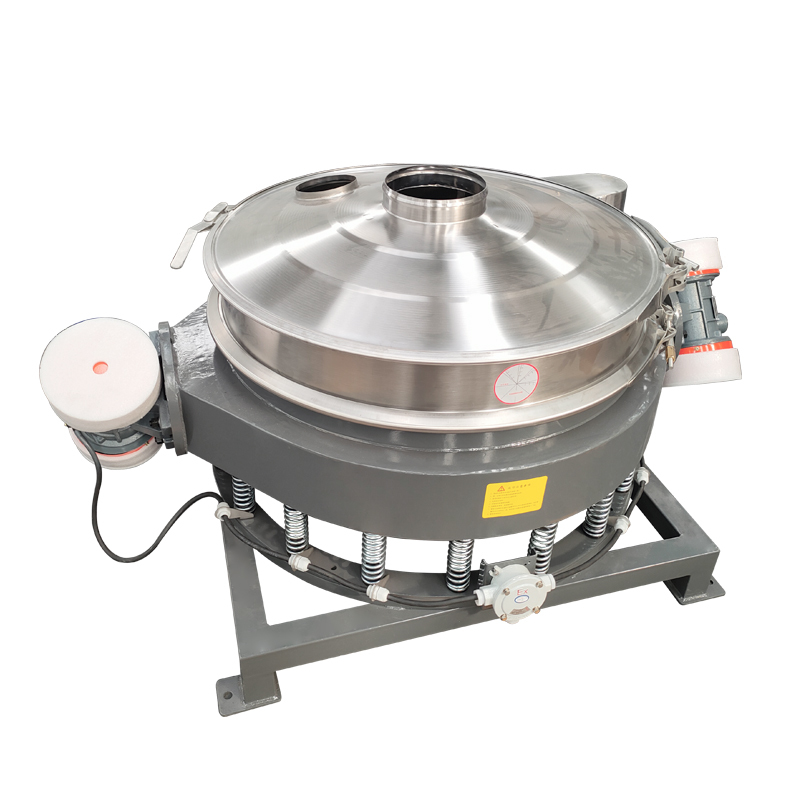

Industrial screening machine

Product description
The straight-through screen is an efficient and professional screening equipment. It is ingeniously designed with a compact structure, and is particularly suitable for quickly classifying and removing impurities from various dry powders or fine particle materials. The screening process of this equipment is simple, with a large processing capacity, and can effectively enhance production efficiency. At the same time, it operates smoothly, has low noise, is easy to clean and maintain, and is the ideal screening choice for industrial production lines that aim for high-quality production.

Working principle
Core principle:
The straight-through screen utilizes two vibration motors installed beneath the screening machine as the excitation sources. When the two motors rotate in opposite directions simultaneously, they generate a reciprocating excitation force along a straight line. Under the drive of this force, the screen box drives the screen mesh to perform linear and regular jumping or vibrating movements.
Work Flow:
1. Feed and Distribution: Materials enter the screening machine through the feed port and fall onto the screen surface. The linear vibration force evenly lifts the materials and transports them forward, while also distributing them uniformly on the screen surface.
2. Screening and Classification: Fine particles smaller than the screen mesh diameter are rapidly passed through the screen under the action of vibration and gravity, achieving classification or impurity removal. Due to its unique straight-out design, the qualified fine materials usually concentrate and are discharged in one direction quickly.
3. Discharge: Large particles or impurities that have not been screened move forward along the screen surface under the push of the linear vibration, and finally are discharged from the other discharge port at the front of the screen box, completing the entire screening process.
Summary of features:
This linear vibration trajectory enables the material to move along a long and fast path on the screening surface, resulting in a large processing capacity. It is particularly suitable for rapid screening, impurity removal, or size classification of granular and powdered materials.

Product Features

High efficiency and large output
The linear vibration drives the materials to be screened rapidly, with strong processing capacity, meeting the requirements of continuous operation.
2. Compact structure, durable
The design is compact with few components, resulting in a low failure rate and stable, reliable operation.
3. Fully enclosed dust prevention
The sealed screening process effectively prevents dust from spilling out, ensuring a clean production environment.
4. Easy for cleaning and maintenance
The screen is easy to disassemble and assemble, with no dead corners inside. It can easily handle material changes.
5. Energy-saving and low consumption
The power is directly used for screening, resulting in low energy consumption and an economical operating cost.
6. The screen is fully utilized
The materials are evenly distributed, and the area utilization rate of the screen is high, resulting in remarkable screening effects.

Product parameter
